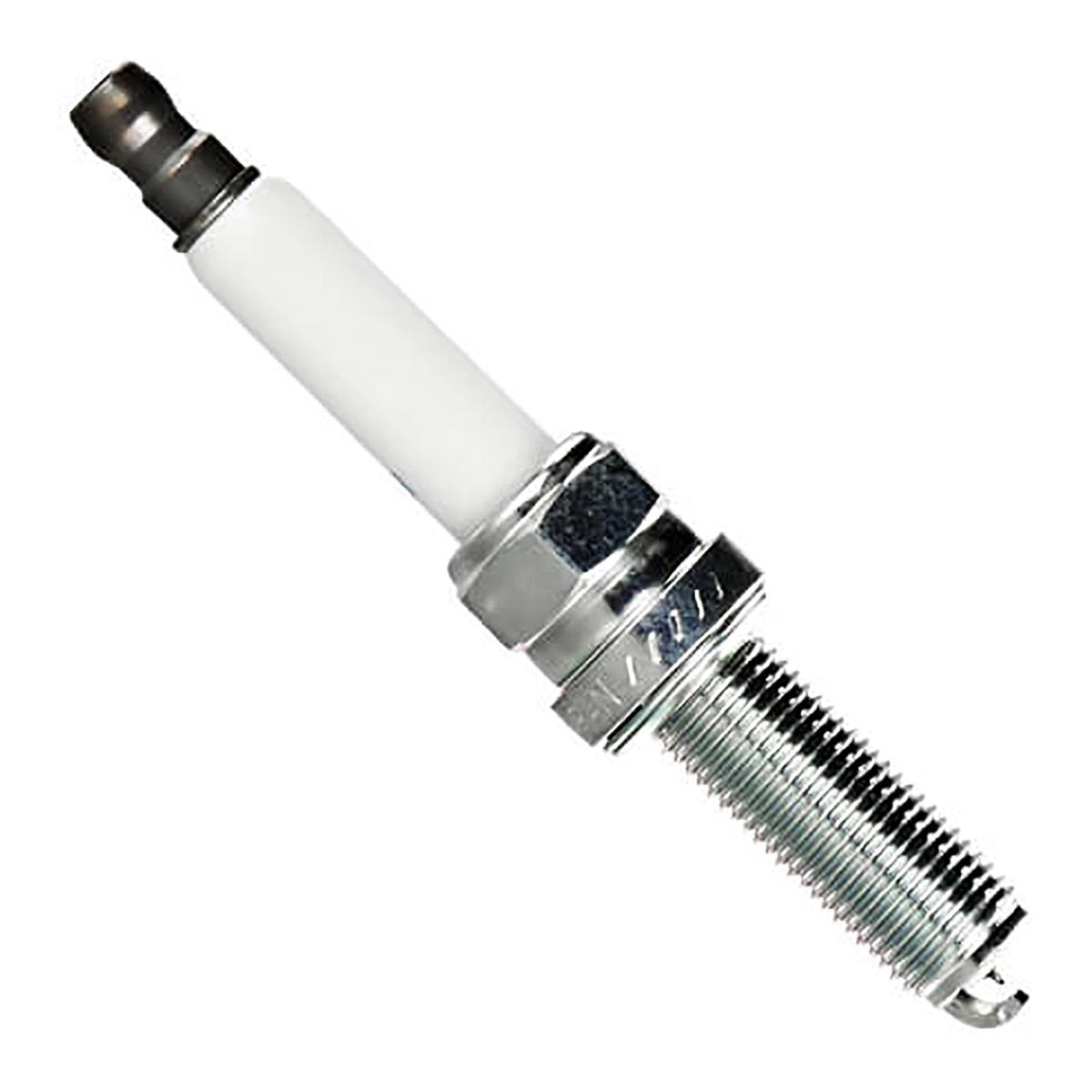

NGK Spark Plug (Each) LMAR9AI-8

NGK has been developing spark plug technology since the 1930s and manufacture plugs for every type of automotive engine, as well as for motorcycles, marine, horticultural, plant and many other applications. In fact NGK produces and stocks over 1,000 different types of spark plug and every product matches even the most demanding manufacturers specifications. The vast experience and technology that NGK has ensures that there is no doubt that NGK are the world No.1 spark plug.

Standard Spark Plugs

The workhorse, at the heart of smooth-running engines around the world.

• OEM Quality
• Triple-Gasket Sealing Process
• Consistent Performance
• Plug of Choice in Millions of Vehicles

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs, each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles, ATVs & UTVs inAustralasia. With NGK’s dedication to quality, outstanding reliability and state of the art manufacturing techniques, you can rely on your NGK Spark Plugs.

Dont just ask for a spark plug, insist on NGK.

NGK iridium spark plugs currently represent the highest-quality technological solution. They feature an iridium-alloy on the middle electrode welded on in a special process using a laser. One of the worlds hardest metals, the precious metal iridium starts melting at a temperature of 2450C and is therefore very resistant to spark erosion. By using it, the service life is doubled on average in comparison to standard nickel spark plugs.

Shell

• Thread Size: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 26.5mm (1.04″)
• Hex Size: 14mm (9/16″)
• Terminal Type: Solid
• Overall Height: ISO
• Gap: 0.8mm (0.031″)

Centre Electrode

• Material: Iridium
• Type: Fine Wire
• Size: 0.6mm
• Projection: Projected

Ground Electrode

• Material: Platinum
• Type: Standard
• Shape: Taper Cut
• Quantity: 1

Specifications

• Heat Range: 9
• Resistor: Yes
